RelationalGroupedDataset¶

RelationalGroupedDataset is an interface for Untyped (Row-based) Grouping to calculate aggregates over groups of rows in a DataFrame.

Note

KeyValueGroupedDataset is used for typed aggregates over groups of custom Scala objects (not Rows).

RelationalGroupedDataset is a result of executing the following grouping operators:

[[operators]] .RelationalGroupedDataset's Aggregate Operators [cols="1,3",options="header",width="100%"] |=== | Operator | Description

| <> a|

| avg a| [[avg]]

| count a| [[count]]

| max a| [[max]]

| mean a| [[mean]]

| min a| [[min]]

| <> a| [[pivot]]

[source, scala]¶

pivot(pivotColumn: String): RelationalGroupedDataset pivot(pivotColumn: String, values: Seq[Any]): RelationalGroupedDataset pivot(pivotColumn: Column): RelationalGroupedDataset // <1> pivot(pivotColumn: Column, values: Seq[Any]): RelationalGroupedDataset // <1>

<1> New in 2.4.0

Pivots on a column (with new columns per distinct value)

| sum a| [[sum]] |===

Note

spark.sql.retainGroupColumns configuration property controls whether to retain columns used for aggregation or not (../in RelationalGroupedDataset operators).

=== [[agg]] Computing Aggregates Using Aggregate Column Expressions or Function Names -- agg Operator

agg creates a DataFrame with the rows being the result of executing grouping expressions (../specified using Columns or names) over row groups.

Note

There are untyped and typed column expressions.

val countsAndSums = spark
  .range(10)
  .withColumn("group", 'id % 2)
  .groupBy("group")
  .agg(count("id") as "count", sum("id") as "sum")

Internally, agg creates a DataFrame with Aggregate or Pivot logical operators.

// groupBy above
scala> println(countsAndSums.queryExecution.logical.numberedTreeString)
00 'Aggregate [group#179L], [group#179L, count('id) AS count#188, sum('id) AS sum#190]
01 +- Project [id#176L, (id#176L % cast(2 as bigint)) AS group#179L]
02    +- Range (0, 10, step=1, splits=Some(8))

// rollup operator
val rollupQ = spark.range(2).rollup('id).agg(count('id))
scala> println(rollupQ.queryExecution.logical.numberedTreeString)
00 'Aggregate [rollup('id)], [unresolvedalias('id, None), count('id) AS count(id)#267]
01 +- Range (0, 2, step=1, splits=Some(8))

// cube operator
val cubeQ = spark.range(2).cube('id).agg(count('id))
scala> println(cubeQ.queryExecution.logical.numberedTreeString)
00 'Aggregate [cube('id)], [unresolvedalias('id, None), count('id) AS count(id)#280]
01 +- Range (0, 2, step=1, splits=Some(8))

// pivot operator
val pivotQ = spark.
  range(10).
  withColumn("group", 'id % 2).
  groupBy("group").
  pivot("group").
  agg(count("id"))
scala> println(pivotQ.queryExecution.logical.numberedTreeString)
00 'Pivot [group#296L], group#296: bigint, [0, 1], [count('id)]
01 +- Project [id#293L, (id#293L % cast(2 as bigint)) AS group#296L]
02    +- Range (0, 10, step=1, splits=Some(8))

=== [[creating-instance]] Creating RelationalGroupedDataset Instance

RelationalGroupedDataset takes the following when created:

[[df]] DataFrame
[[groupingExprs]] Grouping expressions/Expression.md[expressions]
[[groupType]] Group type (to indicate the "source" operator)

** GroupByType for groupBy

** CubeType

** RollupType

** PivotType

=== [[pivot-internals]] pivot Operator

[source, scala]¶

pivot(pivotColumn: String): RelationalGroupedDataset // <1> pivot(pivotColumn: String, values: Seq[Any]): RelationalGroupedDataset // <2> pivot(pivotColumn: Column): RelationalGroupedDataset // <3> pivot(pivotColumn: Column, values: Seq[Any]): RelationalGroupedDataset // <3>

<1> Selects distinct and sorted values on pivotColumn and calls the other pivot (that results in 3 extra "scanning" jobs) <2> Preferred as more efficient because the unique values are aleady provided <3> New in 2.4.0

pivot pivots on a pivotColumn column, i.e. adds new columns per distinct values in pivotColumn.

NOTE: pivot is only supported after groupBy operation.

NOTE: Only one pivot operation is supported on a RelationalGroupedDataset.

val visits = Seq(../
  (../0, "Warsaw", 2015),
  (../1, "Warsaw", 2016),
  (../2, "Boston", 2017)
).toDF(../"id", "city", "year")

val q = visits
  .groupBy(../"city")  // <-- rows in pivot table
  .pivot(../"year")    // <-- columns (../unique values queried)
  .count(../)          // <-- values in cells
scala> q.show
+------+----+----+----+
|  city|2015|2016|2017|
+------+----+----+----+
|Warsaw|   1|   1|null|
|Boston|null|null|   1|
+------+----+----+----+

scala> q.explain
== Physical Plan ==
HashAggregate(../keys=[city#8], functions=[pivotfirst(../year#9, count(../1) AS `count`#222L, 2015, 2016, 2017, 0, 0)])
+- Exchange hashpartitioning(../city#8, 200)
   +- HashAggregate(../keys=[city#8], functions=[partial_pivotfirst(../year#9, count(../1) AS `count`#222L, 2015, 2016, 2017, 0, 0)])
      +- *HashAggregate(../keys=[city#8, year#9], functions=[count(../1)])
         +- Exchange hashpartitioning(../city#8, year#9, 200)
            +- *HashAggregate(../keys=[city#8, year#9], functions=[partial_count(../1)])
               +- LocalTableScan [city#8, year#9]

scala> visits
  .groupBy(../'city)
  .pivot(../"year", Seq(../"2015")) // <-- one column in pivot table
  .count
  .show
+------+----+
|  city|2015|
+------+----+
|Warsaw|   1|
|Boston|null|
+------+----+

IMPORTANT: Use pivot with a list of distinct values to pivot on so Spark does not have to compute the list itself (and run three extra "scanning" jobs).

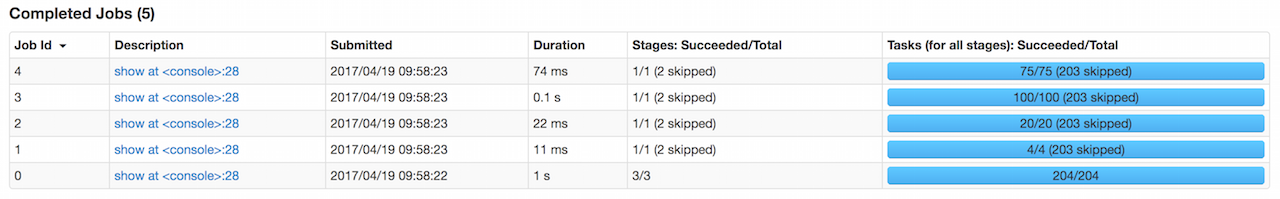

pivot in web UI (../Distinct Values Defined Explicitly)

pivot in web UI -- Three Extra Scanning Jobs Due to Unspecified Distinct Values

Note

spark.sql.pivotMaxValues controls the maximum number of (distinct) values that will be collected without error (when doing pivot without specifying the values for the pivot column).

Internally, pivot creates a RelationalGroupedDataset with PivotType group type and pivotColumn resolved using the DataFrame's columns with values as Literal expressions.

Note

<> internal method maps PivotType group type to a DataFrame with Pivot.md[Pivot] unary logical operator.

scala> q.queryExecution.logical
res0: org.apache.spark.sql.catalyst.plans.logical.LogicalPlan =
Pivot [city#8], year#9: int, [2015, 2016, 2017], [count(../1) AS count#24L]
+- Project [_1#3 AS id#7, _2#4 AS city#8, _3#5 AS year#9]
  +- LocalRelation [_1#3, _2#4, _3#5]
